C18 C20 Roofing Panel Roll Forming Machine
C18 C20 Roofing Panel Roll Forming Machine is a mechanical equipment specially used for producing trapezoidal roof tiles.
It usually adopts advanced technology and process, and can accurately make trapezoidal roof tiles from raw materials (such as metal plates, plastic plates, etc.) through a series of processing steps, including pressing, cutting, bending, etc.
The forming machine is characterized by high efficiency and high degree of automation, which can ensure the consistency of tile size and stability of quality. The operation is relatively simple, and the production parameters can be adjusted according to different needs to produce trapezoidal roof tiles of different specifications and styles. It plays an important role in the construction industry, providing beautiful and durable roof tile materials for various buildings.
The profile drawing for C18 C12:

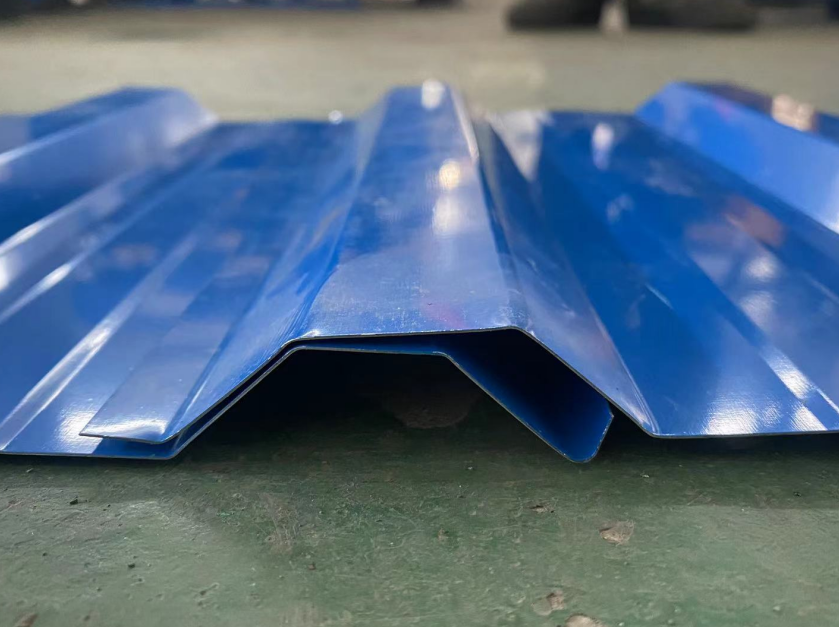

The pictures of the finished product:
The technical specifications of the C18 C20 Roofing Panel Roll Forming Machine:
| Item | Name | Specifications |
| 1 | Raw material | Galvanized steel and Pre-painted steel |
| 2 | Raw material thickness | 0.3-0.5mm |
| 3 | Decoiler | 5T Hydraulic decoiler(Different capacity for option,manual one for option) |
| 4 | Roller station | 18 stations |
| 5 | Roller material | 45# steel with quenched treatment |
| 6 | Shaft diameter | 80mm |
| 7 | Shaft material | 45# steel with tempered |
| 8 | Transmission | by chain |
| 9 | Motor power | 5.5kw moter |
| 10 | Machine frame | 350H steel welded |
| 11 | Cutting type | Hydraulic cutting |
| 12 | Hydraulic power | 5.5kw |
| 14 | Cutting blade material | Cr12 with quenched treatment |
| 15 | Cutting tolerance | +/-1mm |
| 16 | Control system | PLC |
| 17 | Brand | PLC:Delta/Siemens/Mitsubishi
Touch screen:Delta/Siemens/Mitsubishi Encoder:Omron |
The pictures of our machine:
