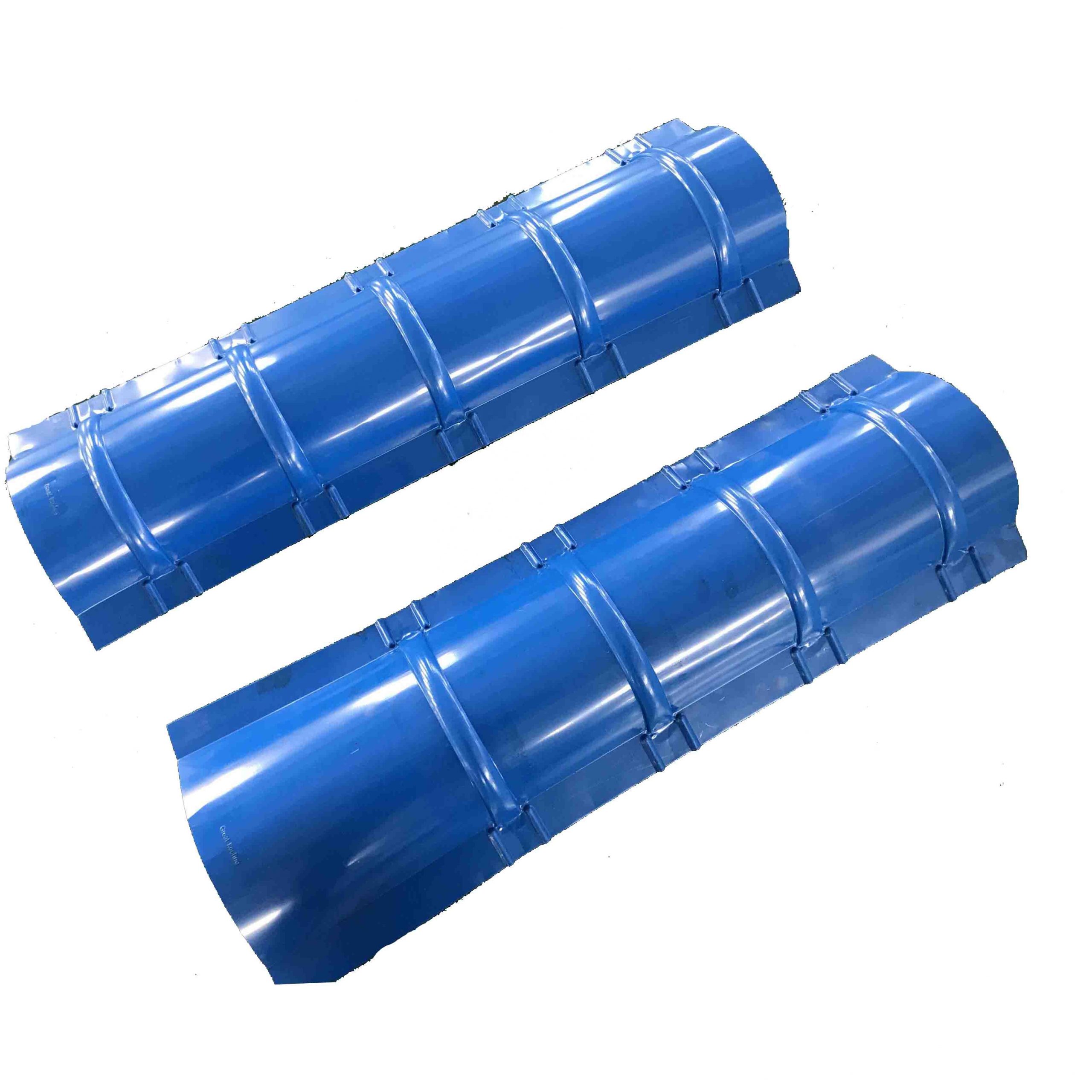

Colored steel PPGI Roof tile ridge edge roll form machine is used to produce the roof ridge cap,the final produce profile and size and be customized as customer’s request.
Technical specifications of the machine:
Item | Name | Specifications |
1 | Material | 1.Raw material:PPGI,Galvanized steel,Stainless steel 2.Raw material thickness:0.3-0.8mm 3.Yield strength:350Mpa,550Mpa 4.Coil width:as the profile drawing |
2 | Main roll former | 1.Roller station:12 station(according to profile drawing) 2.Roller material:Cr 12 with quenched treatment 3.Shaft diameter:70mm 4.Shaft material:45# steel with tempered 5.Transmission:by chain 6.Motor power:5.5kw 7.Machine frame:350H steel welded 8.Cutting type:Hydraulic cutting 9.Cutting blade material:Cr12 with quenched treatment 10.Cutting tolerance:+/-1mm |
3 | Electric brand | 1.Control system:PLC 2.PLC brand:Siemens 3.Touch screen brand:Siemens 4.Button brand:Schneider 5.Encoder brand:Omron 6.Low voltage apparatus:Schneider |
Components of the machine:
No. | Name | Quantity | Picture |
1 |
Manual/hydraulic Decoiler |
1 set |
|
2 |
Main roll former |
1 set |
|
3 |
Control system |
1 set |
|
4 |
Hydraulic system |
1 set |
|
5 |
Product table |
2 sets |  |
