Description of Metal Roofing Panel Roll Forming Machine:
This is a roof/wall panel roll forming machine for continuous rolling and cold-forming on steel sheet. The roof/wall panel roll forming machine adopts coiling steel sheet as the raw material and coil car to feed the coil sheets to the decoiler. Through decoiling, continuous rolling and cold-forming, the coil sheets are automatically cut to the size and specification required. The stacking of finished panel can be also done automatically. It adopts PLC control, AC frequency and speed adjusting technology to realize continuous work automatically. The roll former is energy-saving and high-effective to be used for trapezoidal or corrugated steel.
The advantage of this machine:
It is equipped with 2 cutters,pre-cutter and post cutter.The function of the pre-cutter is to cut the coil in the beginning of roll former.It is eaily and useful for changing different colors and thickness of coil.It can reduce the waste material.
The consists of the machine:decoiler,roll former with cutter,control system,hydraulic system,product table.
Working flow:
Technical specifications of the whole line:

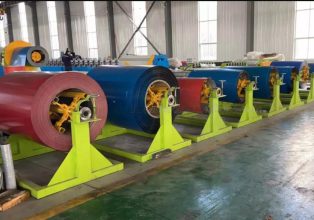

1.Decoiler
- Capacity:5-10 tons as requested
- Coil inner diameter:450-550mm
- Coil width:max 1500mm
- Working type:2 types,up-power and power
- With braking system
- Manual and hydraulic decoiler is optional
2.Main roll former
- Shaft diameter:80mm
- Shaft material:45# steel with tempered
- Roller material:45# steel with quenched treatment,chormed in the surface
- Roller station:18 (Design as the profile)
- Power:5.5 kw
- Drived by chain
- Main frame:350# H steel welded
- Cutting mode:Hydraulic cutting
- Cutter:Pre-cutter and post cutter
3.Control system
- Function:Control the length,quantity and batch of the panel.
- Control system:PLC
- Touch screen and PLC brand:Siemens
- Encoder brand:Omron
- Button:Schneider
- Low-voltage apparatus:Schneider
- Language:Chinese,English,French,Russia,Arab etc
4.Hydraulic system
- Brand:Yuken system
- Power:5.5 kw
- With fan cooling system
- Low noise
- Pressure:16Mpa
- Oil model:46# Hydraulic oil
5.Product table
- Length:3m-12m optional
- Working type:manual or automatically
We are a factory who is specialized in manufacturing roll forming machines,and we have professional engineer who can design the machine as customer’s request.We also have branch company in India,welcome to contact us if you need this kind of machine.
