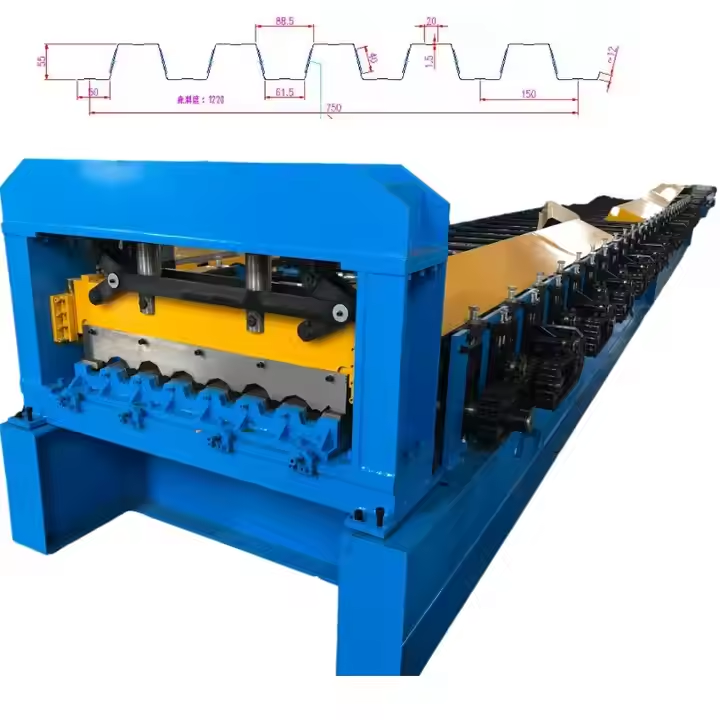

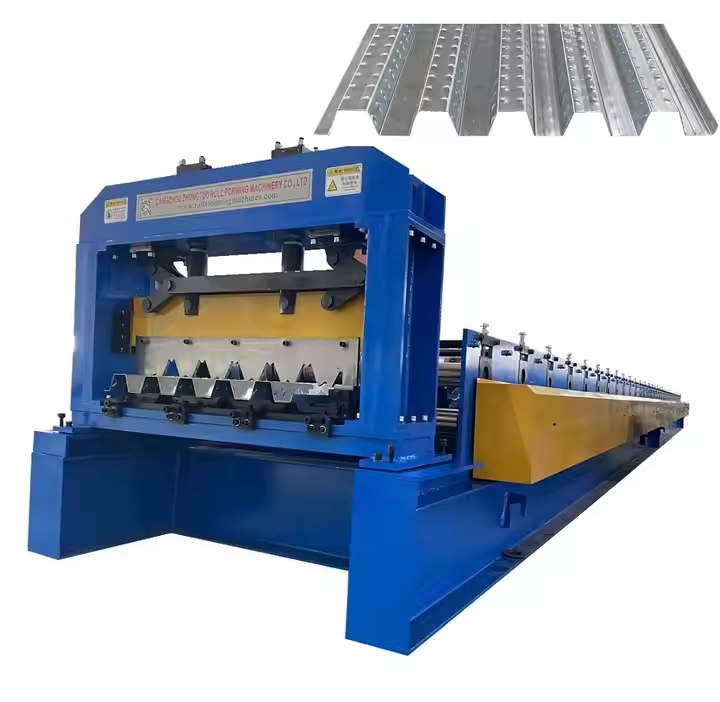

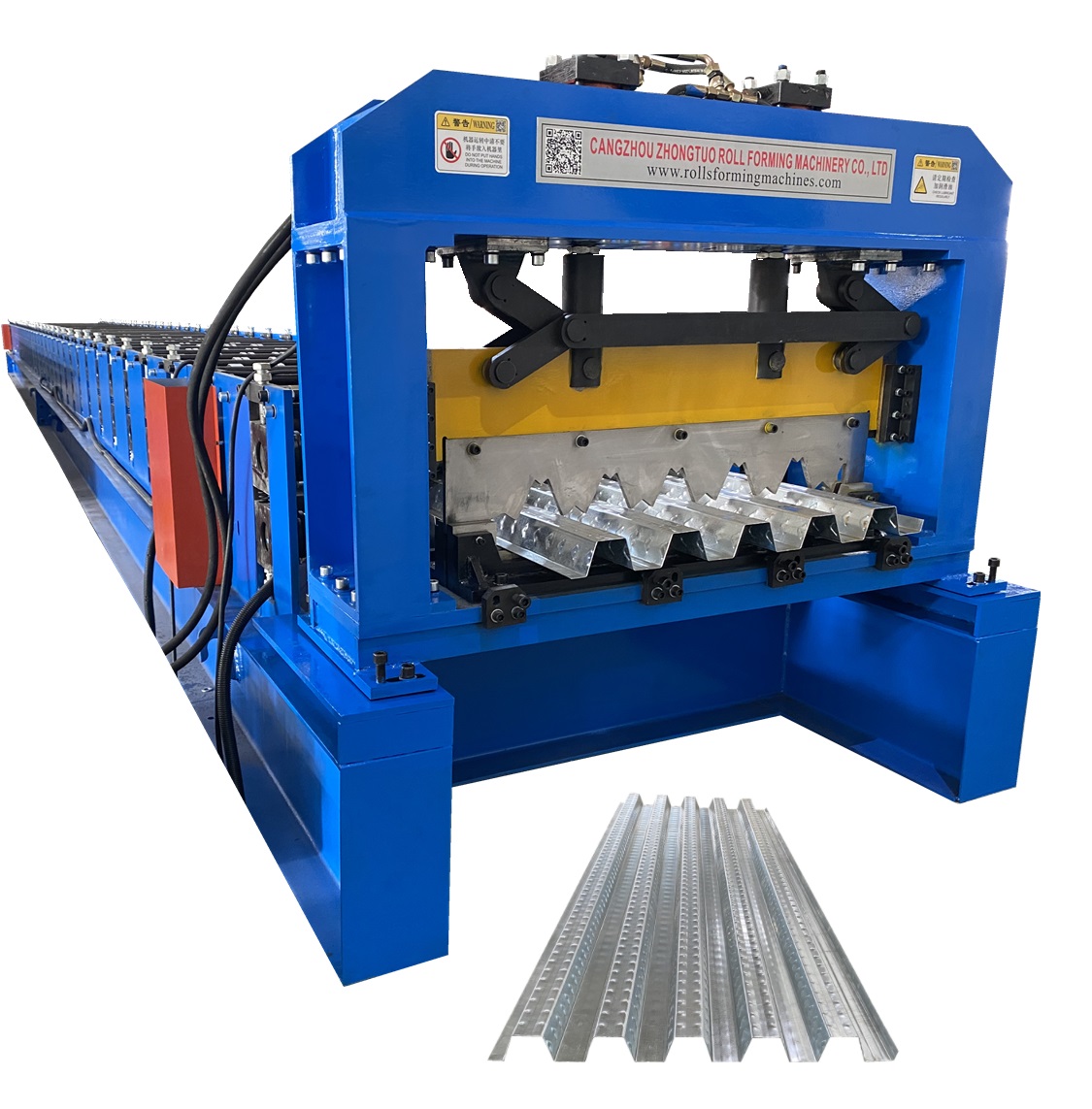

The floor decking rolling forming machine is an industrial equipment that can transform flat metal sheets into solid floor decking. Placed in the factory and ready for operation, when production commences, the rollers of this machine start rotating and precisely shape the metal. It continuously works to produce smooth and durable floor decking. If you are in the market for cold roll forming equipment, feel free to consult us. CangZhou Zhongtuo is a company boasting over ten years of experience in cold roll forming equipment, and our floor decking rolling forming machine is a reliable choice.

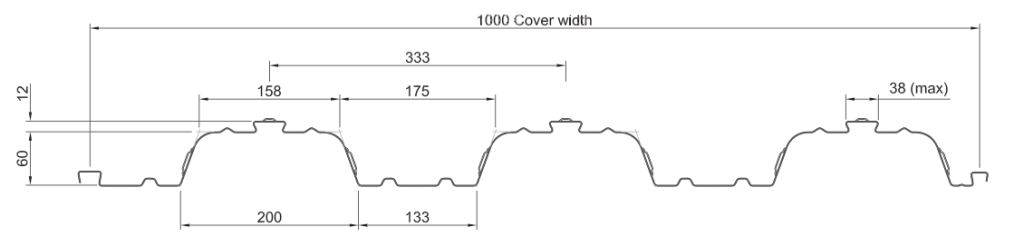

Customer Requirement:

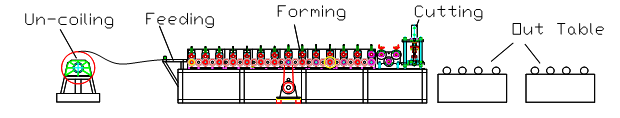

Working flow:
Main parameters of the floor decking rolling forming machine:

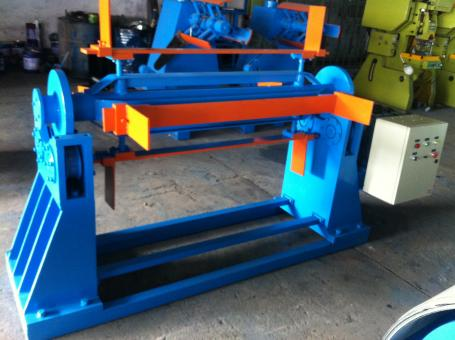

1.5T decoiler
| Loading capacity | 5T |
| Uncoiling width | 1250mm |
| Inner diameter | 450-550mm |
| Motor | Hydraulic automatically working. |

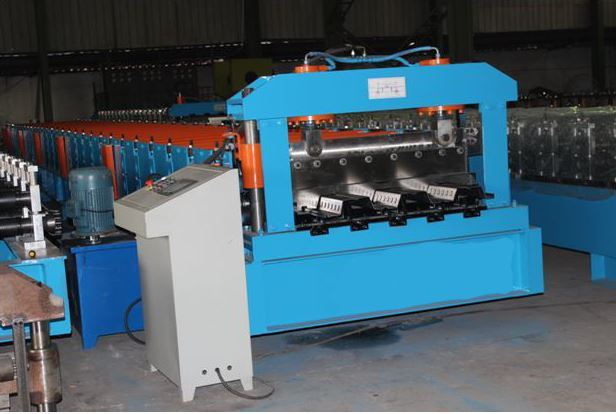

3.Main roll forming machine
| Size | about 7500х1650х1500 |
| Weight | 4. 5 tons |
| Voltage | 380V/50HZ 3Phase or as your required |
| Roller fixer | middle plate |
| Frame | 350mm H beam steel welded |
| Drive mode | 1.0 inch single row chain |
| Material of rollers | 45# steel, surface hard chromium plating. |
| Diameter of shafts | φ85mm material is 45# forge steel |
| Number of rollers | 28 rollers station. |
| Main power | 15kw |

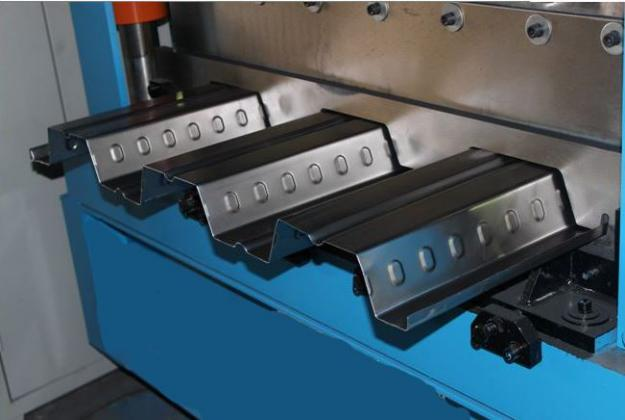

4.Cutting System
| Material of blades | Cr12 quenched |
| Power supply | hydraulic power |
| Components | It contains one set of blade, one hydraulic tank and one cutter machine. |
