Fully Automatic U Track Profile with Holes Slotted U Channel Rolling Forming Machine
Application areas:
1.Construction industry: used to construct lightweight and efficient building structures, such as ceilings and partitions.
2.Furniture manufacturing: used to make various supporting frames.
3.Vehicle manufacturing: used for the internal structure and external decoration of vehicles.
4.Electrical industry: producing electrical enclosures and related components.
The Fully Automatic U Track Profile with Holes Slotted U Channel Rolling Forming Machine adopts advanced automation technology, which can quickly and accurately complete the punching and forming of U-shaped keels, significantly improving production efficiency and reducing labor costs. The machine is equipped with high-precision punching molds, which can ensure that the position and size of each hole meet the design requirements, ensuring the quality and accuracy of the keel.

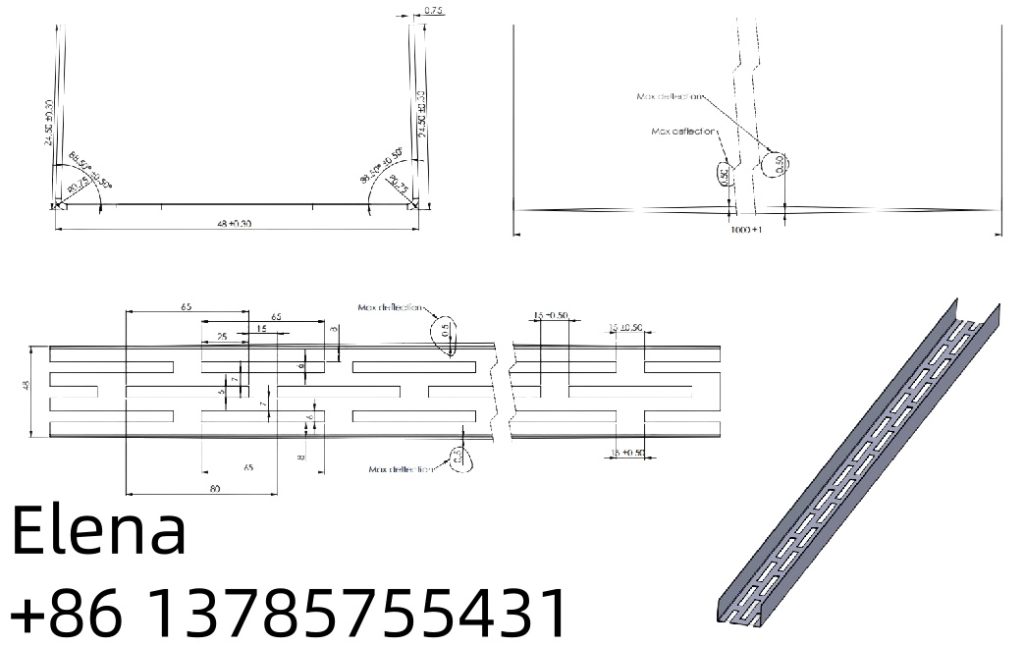

Profile drawing of Fully Automatic U Track Profile with Holes Slotted U Channel Rolling Forming Machine ：

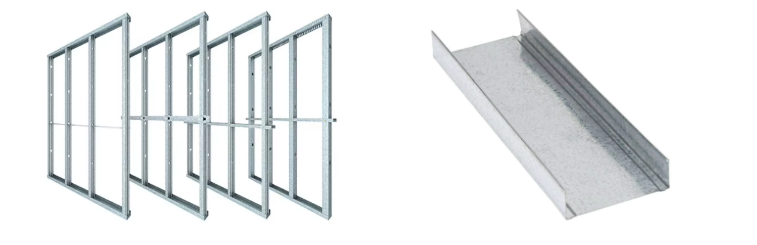

Other models for you to choose from:
Other attributes：
| Item | Name | Specifications |
| 1 | Raw material | GI&PPGI |
| 2 | Raw material thickness | 0.4—0.8 mm |
| 3 | Decoiler | 5T |
| 4 | Felt device | Available |
| 5 | Roller station | 10stations |
| 6 | Roller material | 45# steel |
| 7 | Shaft diameter | 40mm |
| 8 | Shaft material | 45# steel |
| 9 | Transmission | By gears |
| 10 | Motor power | 3kw |
| 11 | Machine frame | Vertical arch frame structure |
| 12 | Cutting type | Hydraulic cutting |
| 13 | Hydraulic power | 3kw |
| 14 | Cutting blade material | GB-Cr12 |
| 15 | Cutting tolerance | +/1mm |
| 16 | Control system | Delta/ Siemens PLC |
