The glazed tile roofing sheet machine is a device used for building houses. This device uses galvanized steel plates or colored steel plates or aluminum plates of different colors as raw materials. The products produced are used to construct the exterior roof and wall panels, as well as interior decorative panels or ceilings of houses, to increase the aesthetics and durability of the roof or walls.
The profile drawing:

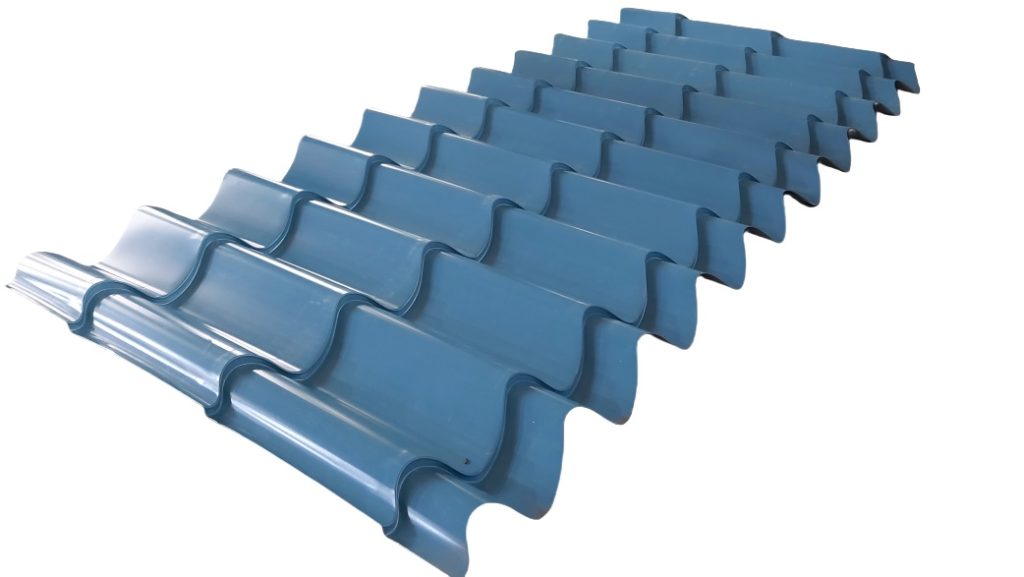

The pictures for the finished product:
Production process:
Uncoiler-Feeding material into machine→Roll forming→hydraulic cutting→ Products receiving
Packing list of the Glazed tile roofing sheet machine :
| No. | Name | Quantity |
| 1 | Manual/hydraulic Decoiler | 1 set |
| 2 | Main roll former | 1 set |
| 3 | Control system | 1 set |
| 4 | Hydraulic system | 1 set |
| 5 | Product Run-out table | 1 set |
The technical specifications of the Glazed tile roofing sheet machine :
| Item | Name | Specifications |
| 1 | Raw material | colored steel plate, galvanized plate, or aluminum plate |
| 2 | Raw material thickness | 0.3—0.8mm |
| 3 | Decoiler | 5T |
| 4 | Felt device | Available |
| 5 | Roller station | 14stations |
| 6 | Roller material | 45# steel, surface hard chromium plating. |
| 7 | Shaft diameter | 80mm |
| 8 | Shaft material | 45# steel |
| 9 | Transmission | By Gearbox |
| 10 | Motor power | 5.5kw |
| 11 | Machine frame | 350 H steel |
| 12 | Cutting type | Hydraulic cutting |
| 13 | Hydraulic power | 5.5kw |
| 14 | Cutting blade material | Cr12 quenched |
| 15 | Cutting tolerance | +/1mm |
| 16 | Control system | Delta/ Siemens PLC |
The function of the Glazed tile roofing sheet machine :
1.Small size and light weight:
The glazed tile roofing sheet machine has a small volume, light weight, easy movement and transportation, occupies a small space, and is suitable for various production environments.
2.Low cost:
The equipment has a high degree of automation, saving a lot of labor costs, while the maintenance and upkeep costs of the equipment are relatively low.
3.High production efficiency:
By adopting advanced hydraulic systems and automated control systems, large-scale and high-speed production can be achieved, greatly improving production efficiency.
4.Good product quality:
Due to the use of high-precision production technology and equipment, the quality of glazed tiles is guaranteed, with a beautiful appearance, uniform color, and resistance to discoloration.

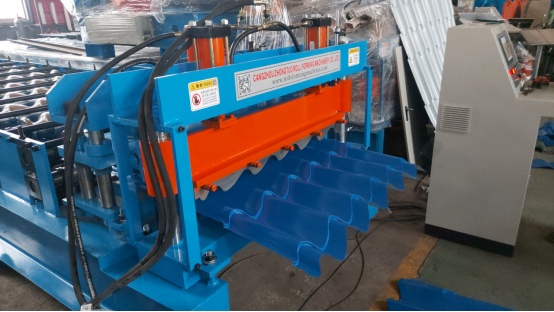

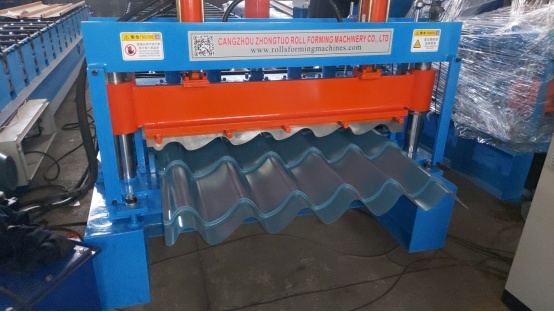

Machine photos:
