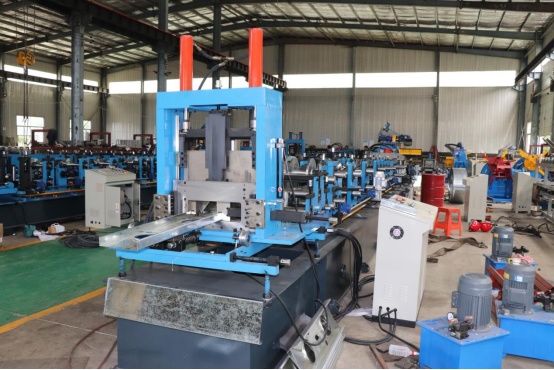

Grouting Keel Rolling Machine
The main function of the Grouting Keel Rolling Machine is to produce grouting keels. The Keel Rolling Machine uses strip steel as raw material and undergoes continuous cold rolling to produce various building profiles such as light steel keels, painted keels, and card keels, as well as cold bending and painted equipment. These devices are usually controlled by PLC to ensure production accuracy and efficiency.

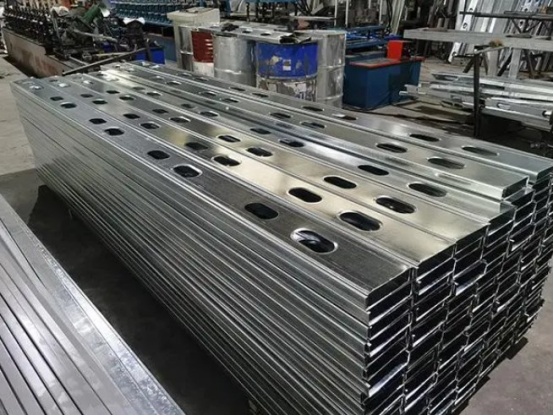

The pictures for the finished product:
Packing list of the Grouting Keel Rolling Machine:
| No. | Name | Quantity |
| 1 | Manual/hydraulic Decoiler | 1 set |

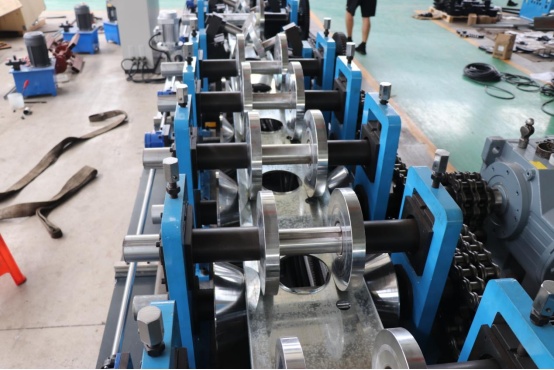

| 2 | Main roll former | 1 set |
| 3 | Control system | 1 set |
| 4 | Hydraulic system | 1 set |
| 5 | Product Run-out table | 1 set |
The technical specifications of the Grouting Keel Rolling Machine:
| Item | Name | Specifications |
| 1 | Raw material | GI&PPGI |
| 2 | Raw material thickness | 0.3-0.8mm |
| 3 | Decoiler | 3T |
| 4 | Felt device | Available |
| 5 | Roller station | 12stations |
| 6 | Roller material | 45# steel |
| 7 | Shaft diameter | 40mm |
| 8 | Shaft material | 45# steel |
| 9 | Transmission | By double chains |
| 10 | Motor power | 5.5kw |
| 11 | Machine frame | Steel plate welded |

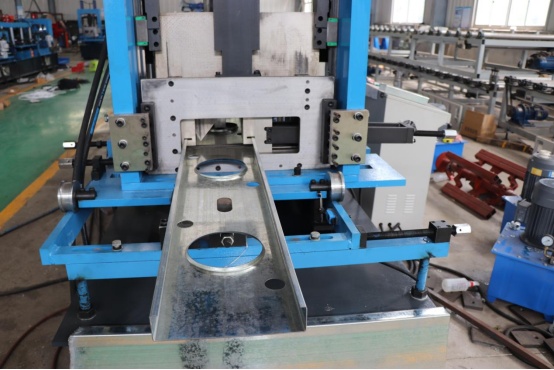

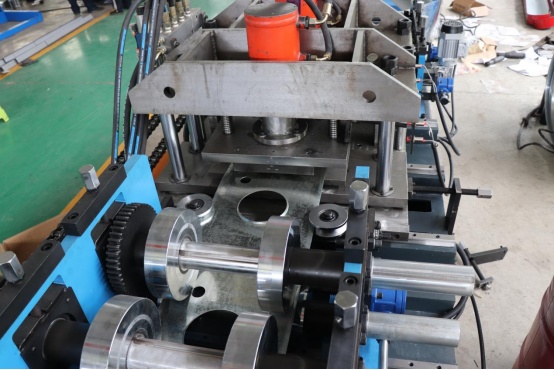

| 12 | Cutting type | Hydraulic cutting |
| 13 | Hydraulic power | 4kw |
| 14 | Cutting blade material | Cr12 quenched |
| 15 | Cutting tolerance | +/1mm |
| 16 | Control system | Delta/ Siemens PLC |
