This CU channel light keel roll forming machine is an automatic production line, and the width sizes of it can be changed by PLC. Moreover, this roll forming machine is capable of making both C – shape and U – shape light steel.
The technical specifications of a U channel light keel production line:

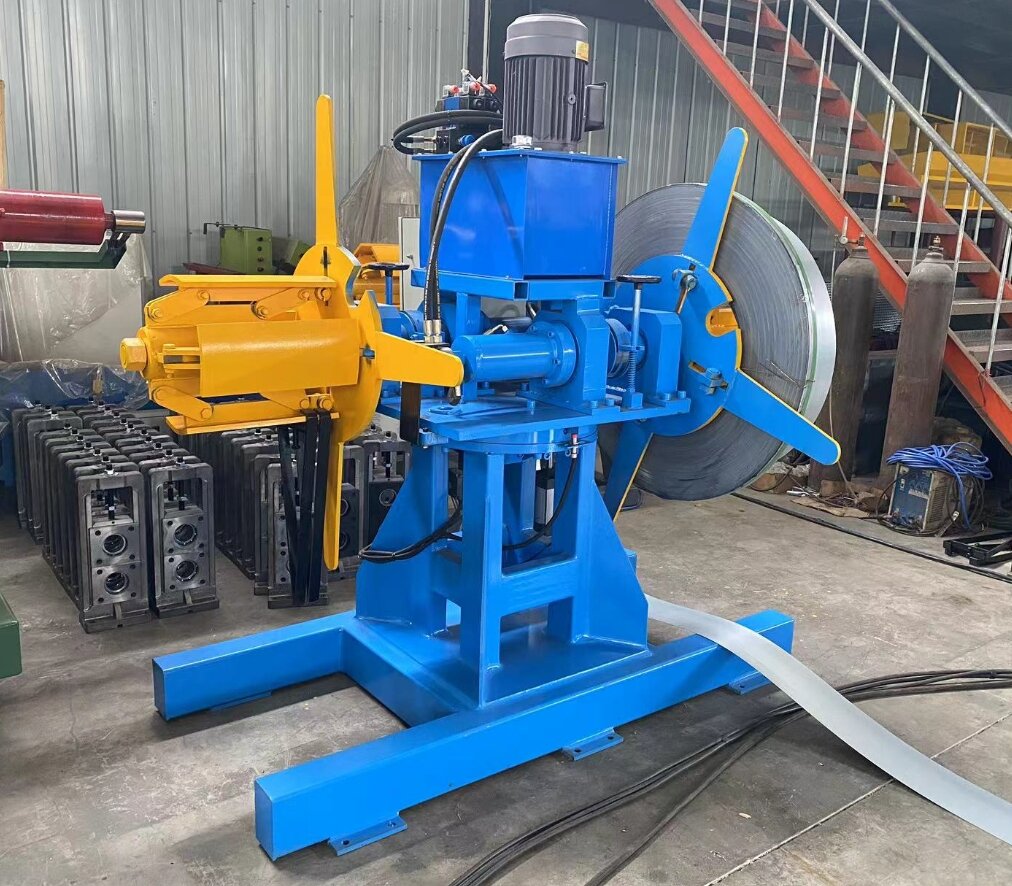

1.Uncoiler device: double-head type
| Capacity | 3 tons *2 |
| Coil width | max 1000mm, as customer’s request |
| Working type | hydraulic transmission |
| 4 support arms design | support the coil and prevent crease when uncoiling |
2.Roll forming machine
| Frame structure | 35mm thickness arch frame |
| Roller station | 14 stations |
| Transmission type | by gearbox |
| Main motor power | 7.5kw+11kw |
| Hydraulic power | 4*5.5 kw |
3.Hydraulic servo cutting system of CU channel light keel roll forming machine
| No-stop cutting design | moving by the servo motor |
| Material of cutting blade | GCr12Mov |
| Hydrauli | 5.5kw |
