High speed corrugated roofing sheet machine
High speed corrugated roofing sheet machine is a mechanical equipment specifically used for producing roof tiles with corrugated shapes. Its main features include high precision, high efficiency, and ease of operation. Using advanced molding technology and materials, the raw materials are pressed into tiles with corrugated shapes through precise mechanical transmission and control systems.

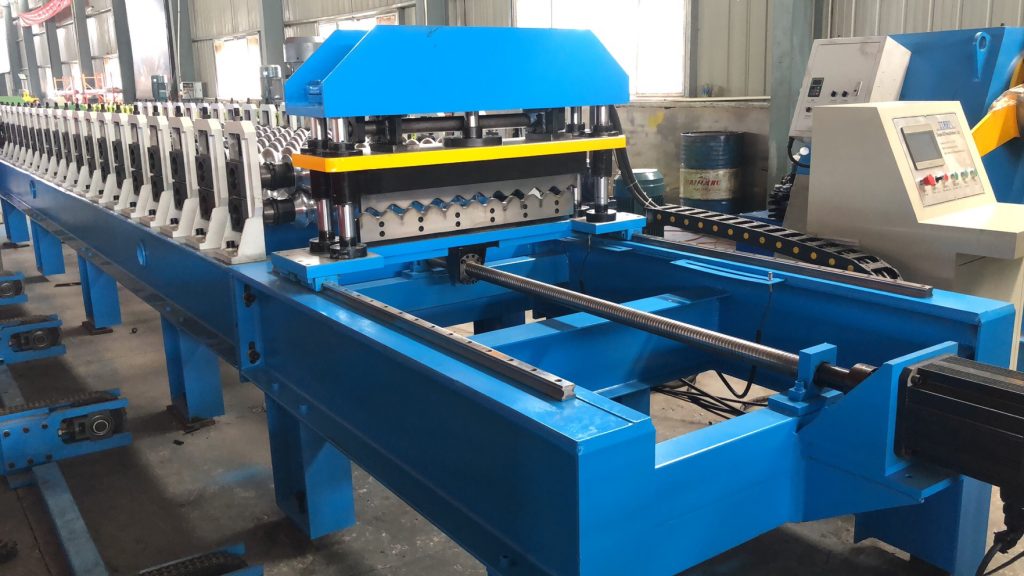

Machine introduction of High speed corrugated roofing sheet machine：
The profile drawing:
Application areas:
The tiles produced by the high speed corrugated roofing sheet machine have a beautiful appearance and excellent performance, and are widely used in fields such as construction, decoration, and landscaping. Specific applications include:
1.Roof tiles: used for making roof tiles, with excellent properties such as waterproofing, fireproofing, and corrosion resistance.
2.Wall decorative tiles: used for wall decoration to enhance the aesthetics and functionality of buildings.
3.Landscape tiles: used in landscape design to enhance the beauty and practicality of the landscape.
Working Flow of High speed corrugated roofing sheet machine：
Coiler loading → feed-in (sheet metal is put by guiding platform) → roll&forming → hydraulic cutting → auto stacker
Specifications of High speed corrugated roofing sheet machine：
| 1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm |
| 2.Decoiler | Hydraulic automatic decoiler | will give you as free |
| 3.Main body | Roller station | 19 rows(As your requirement) |
| Diameter of shaft | 80mm solid shaft | |
| Material of rollers | 45# steel, hard chrome plated on the surface | |
| Machine body frame | 350 H steel | |
| Drive | gearbox transmission | |
| Dimension(L*W*H) | 9500*1600*1600(customize) | |
| Weight | 13tons | |
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
| 5.Power | Motor Power | 5.5KW |
| Hydraulic system power | 4.5KW | |
| 6.Voltage | 380V 50Hz 3Phase | As your requirement |
| 7.Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| 18.Forming Speed | 0-40/min | The speed depends on the shape of the tile and the thickness of the material. |
Some characteristics of High speed corrugated roofing sheet machine：
1. High molding accuracy:
Adopting high-precision mechanical transmission and control system to ensure the molding accuracy and stability of tiles.
2. High production efficiency:
With efficient production capacity, it can quickly complete the pressing work of a large number of tiles, meeting the needs of large-scale production.
3. Easy to operate:
The operation interface is simple and clear, easy to get started, and has complete protective measures to ensure the safety of operators.
