Introduction:

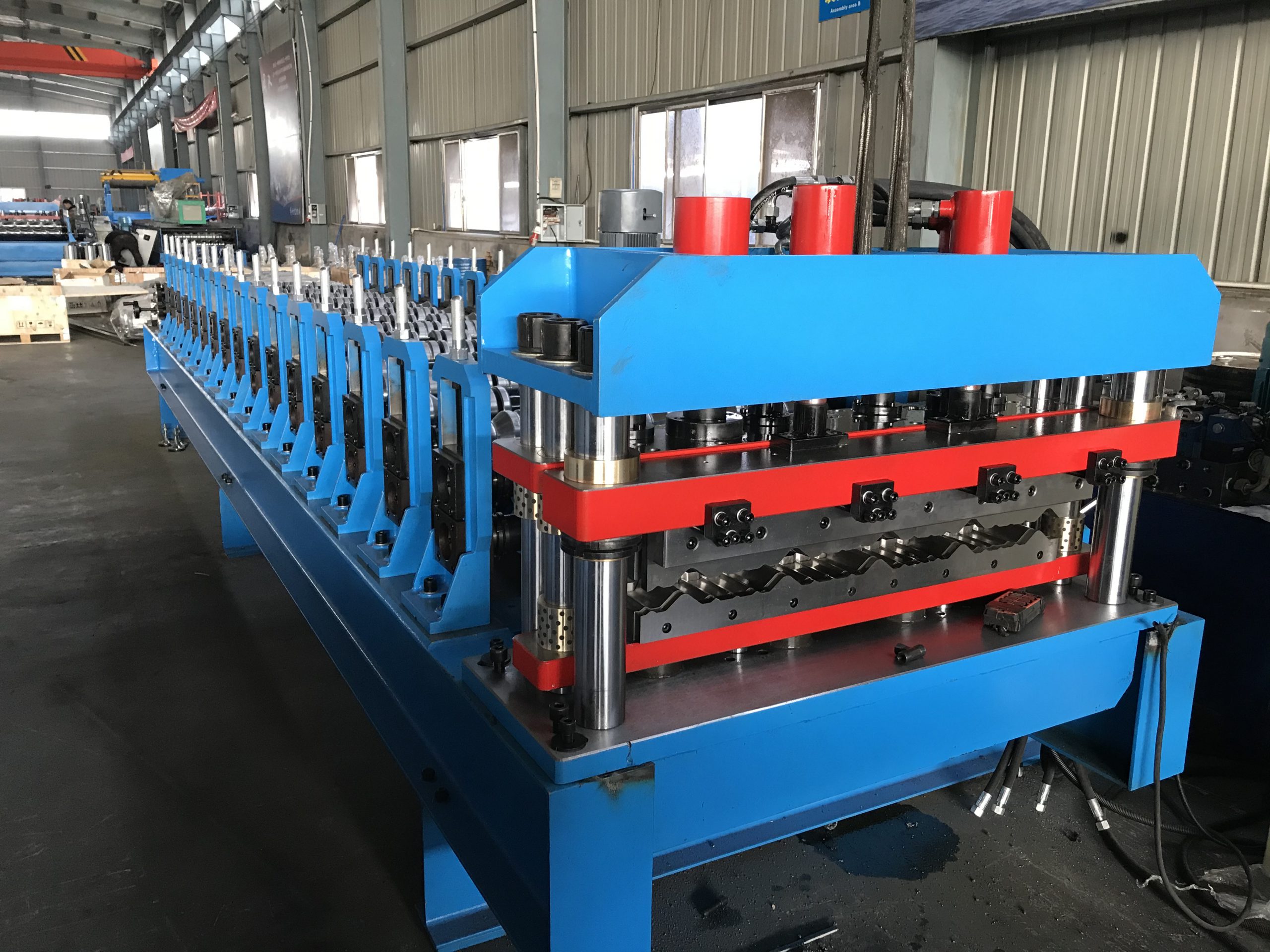

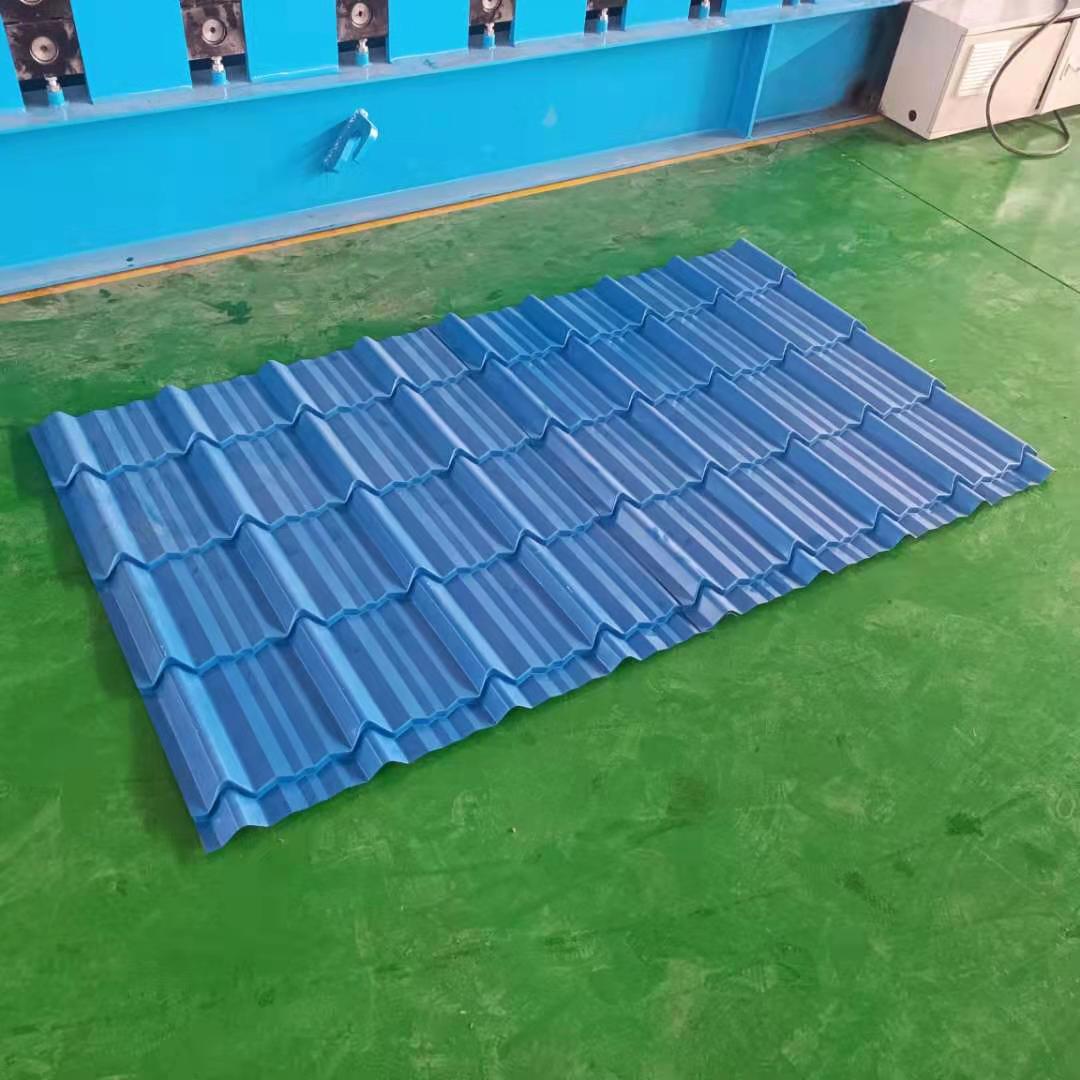

Becaue of the high demand of the metal tile in the market,the traditional roll forming machine’s low productivity can’t meet customer’s request.So we produced this high speed metal tile roll forming machine for the big quantity needed.
The advantage of this machine:
1.High speed:8-10m/min
2.Intergrated pressing and cutting,which can reduce the waste material in the beginning of each coil.And it also can improve the working speed.
3.Gearbox drive,which make the working more stable and improve the speed of the machine.
4.Molding frame structure which can increase the machine’s life-time.
Technical parameters of the whole production line:
Item | Name | Specifications |
1 | Decoiler | 1.Capacity:5 tons 2.Coil width:1250mm 3.Coil inner diameter:450-550mm 4.Main motor power:5.5 kw 5.Hydraulic power:5.5 kw 6.Add press arm to keep the coil from loosing. 7.Add pneumatic braking system 8.Add the speed sensor to keep the decoiler’s speed match with the roll former |
2 | Main roll former | 1.Roller station:18 station(according to profile drawing) 2.Roller material:Cr 12 with quenched treatment 3.Shaft diameter:80mm 4.Shaft material:45# steel with tempered 5.Transmission:by chain 6.Motor power:5.5kw 7.Machine frame:350H steel welded 8.Cutting type:Hydraulic cutting 9.Cutting blade material:Cr12 with quenched treatment 10.Cutting tolerance:+/-1mm |
3 | Control system | 1.Control system:PLC 2.PLC brand:Siemens 3.Touch screen brand:Siemens 4.Button brand:Schneider 5.Encoder brand:Omron 6.Low voltage apparatus:Schneider |
4 | Hydraulic system | 1.Power:5.5kw 2.With fan cooling device 3.Brand:Yuken |
5 | Product table | 1.Length:3 m 2.Type:up-powered |
