Roofing Sheet Roll Forming Machine

What is Roofing Sheet Roll Forming Machine?

Roofing sheet roll forming machine is an industrial equipment that is designed to produce high-quality roofing sheets used for constructing commercial, residential, and industrial buildings.

This machine can produce different shapes, different materials and different thickness of roofing sheet. It is customized as final user’s request.

ZTRFM Cangzhou Zhongtuo Roll Forming Machinery is the professional manufacturer to produce this kind of machines, we have exported machines to more than 150 countries which includes: USA, Canada, Italy, Mexico, Iraq, India, Peru and so on.

The component of the Roll Forming Line:

Hydraulic Uncoiler/ decoiler / Manual uncoiler

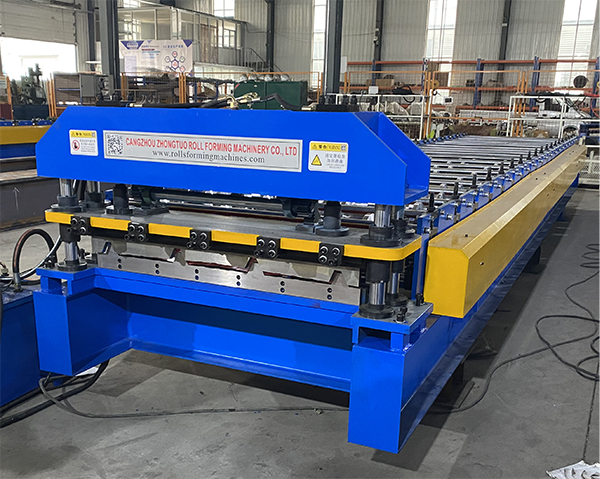

Main Roll Forming Machine

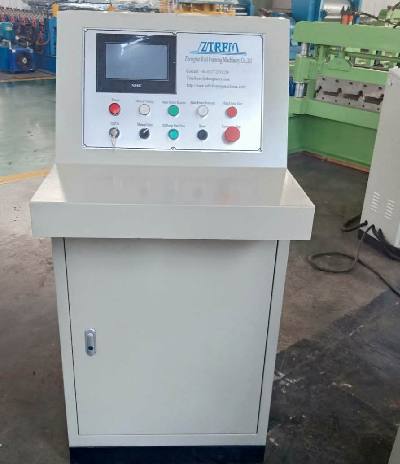

Control station
Hydraulic station
Auto stacker/ receive table

Layout of the whole production line:

Metal roofing sheet making machine types:

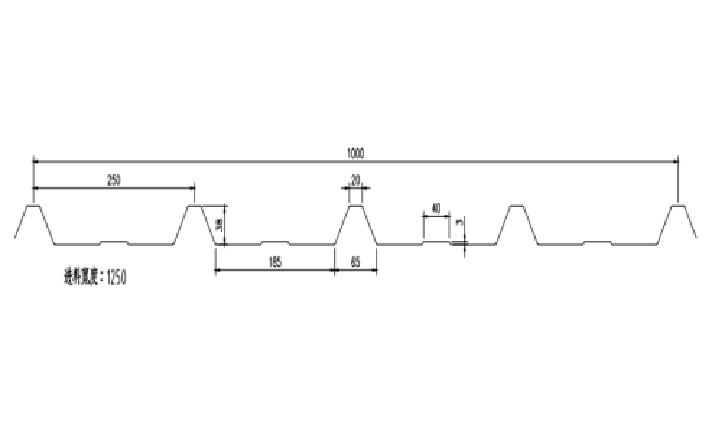

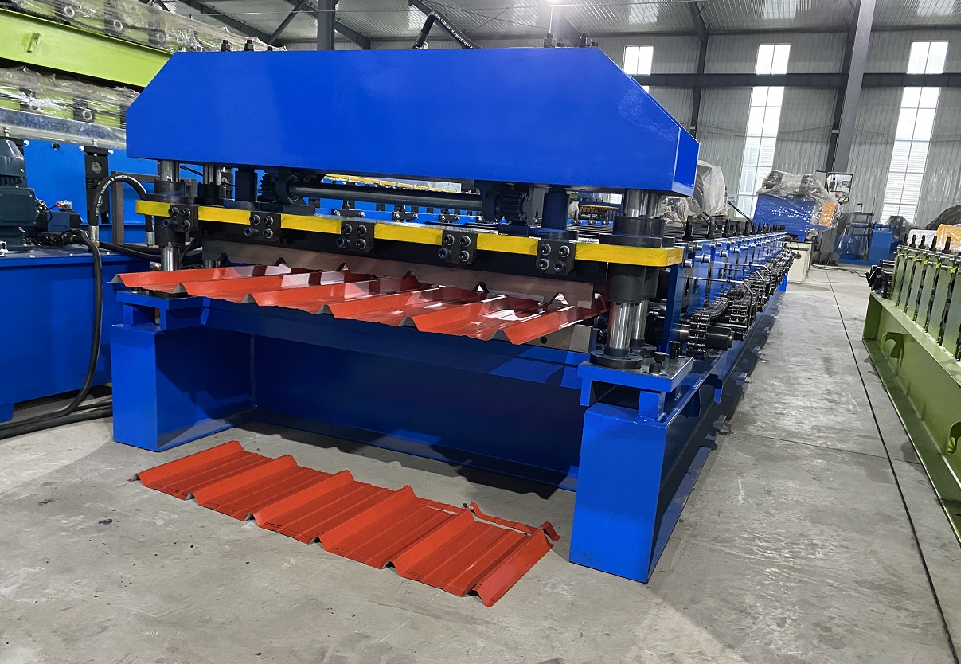

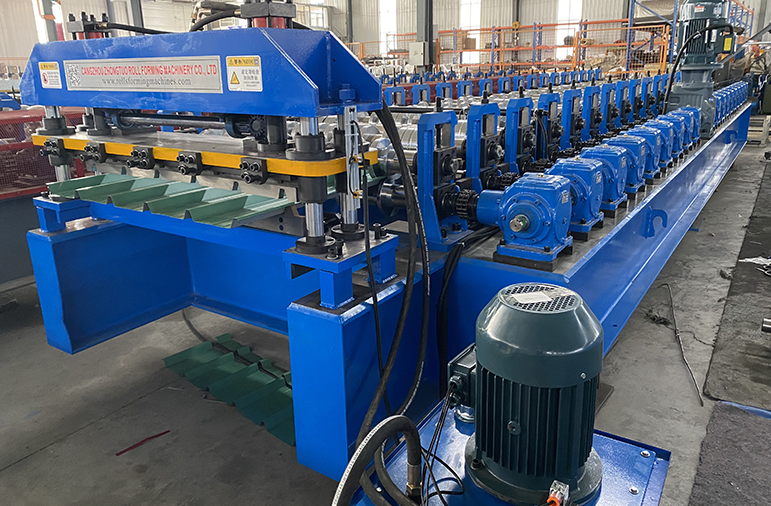

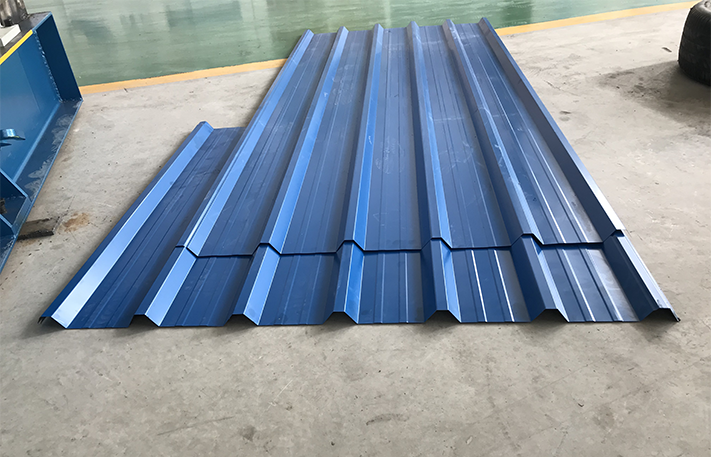

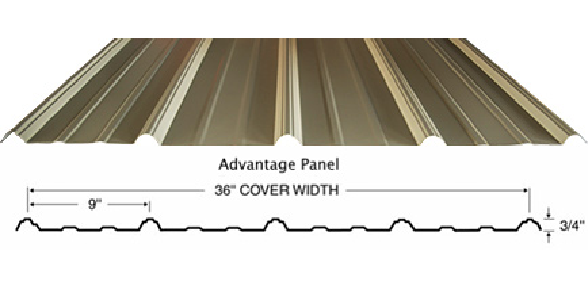

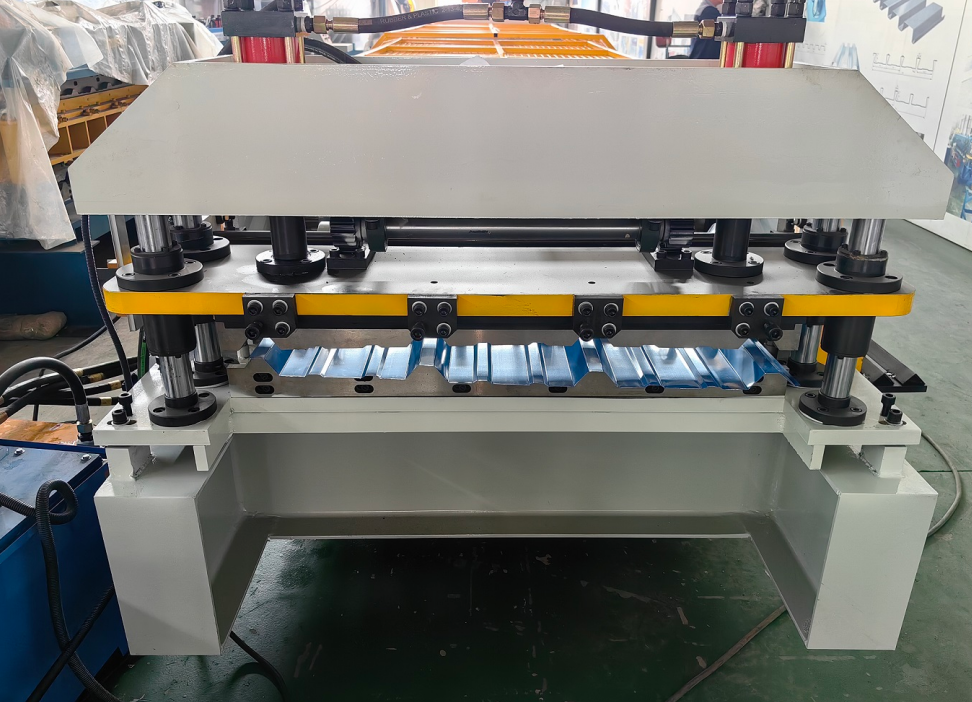

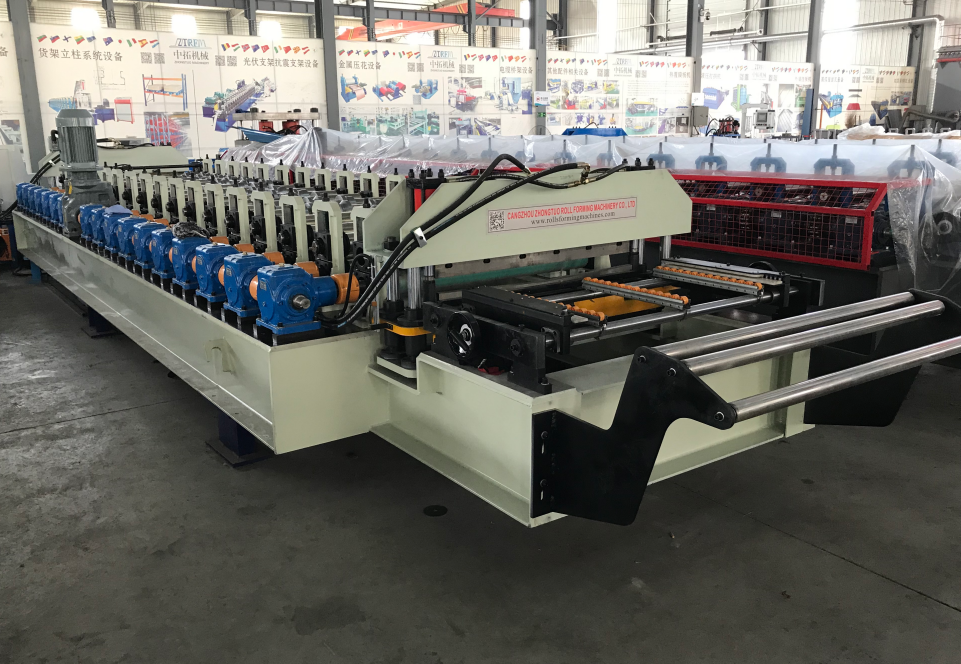

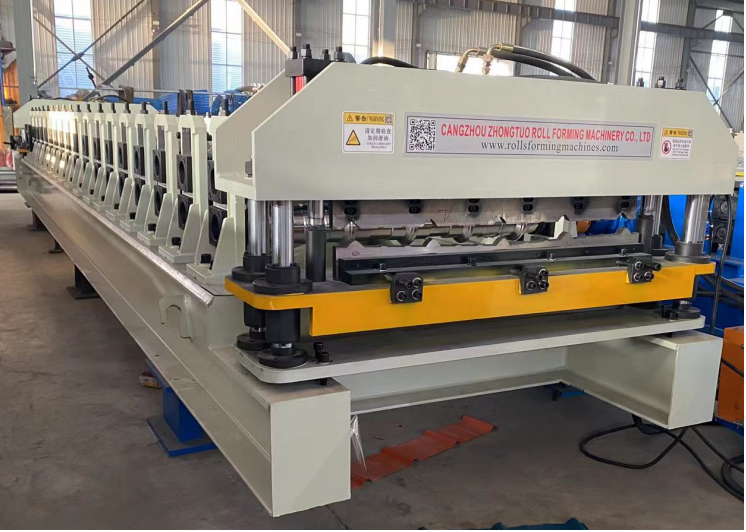

IBR trapezoidal sheet roll forming machine

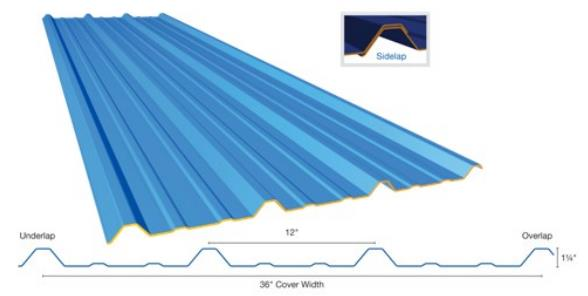

This is the classic roofing sheet which is used widedly. IBR comes from the name of “ Inverted Box Rib” which is a famous name in African market. Some other countries call R panel sheet, BOX profile sheet, trapezoidal sheet and so on. This is the most variable sheets in the whole world, each country has different sizes.

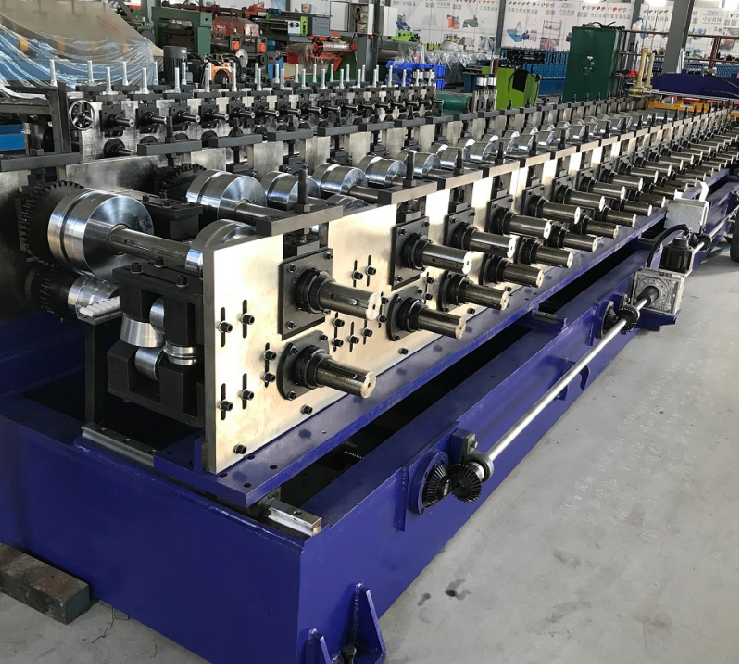

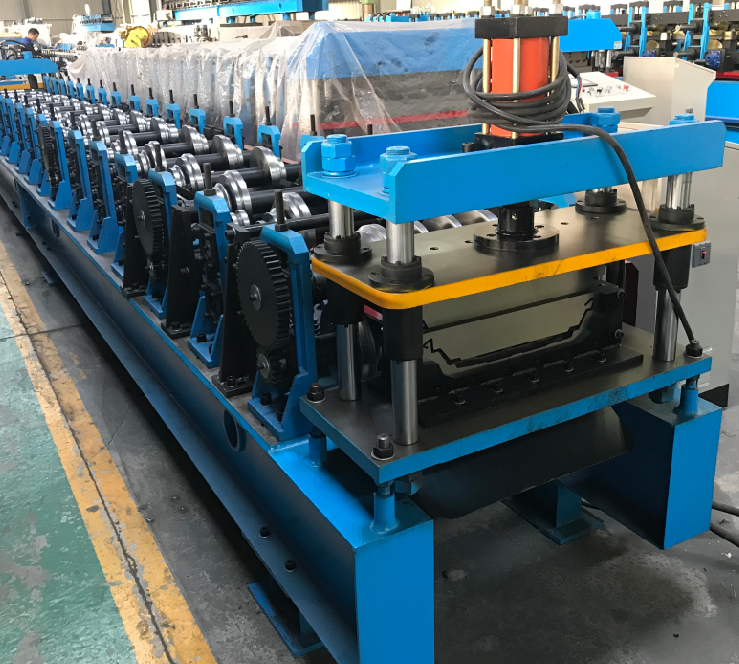

Mechanical/Snap Lock Standing seam roll forming machine

Standing seam metal roofing is defined as a concealed fastener metal panel system that features vertical legs and a broad, flat area between the two legs. It’s also described as having raised seams, or vertical legs, that rise above the panel’s flat area. Standing seam systems can be used for either metal roofing or metal walls.

The main idea for standing seam systems is that the fastener is hidden, whether the panel is attached to the roof deck using a clip or is directly fastened to the decking material under the vertical leg (fastener flange).
