Introduction of the machine:
This simple cut to length line is used to cut the PPGI or Galvanized or Aluminum coil to specified length and width,the length and width is adjusted as customer’s request.
Finished product:
Technical specifications of the whole lilne:
1.Avaliable raw material:PPGI,GI,PPGL,GL
2.Raw material thickness:0.3-1.0mm
3.Raw material width:as per request.
4.Coil weight:5-10T or as request
5.Leveling roller:11 rollers,5 up 6 down
6.Roller diameter:70mm
7.Power:5.5kw
8.Transmission:by gear
9.Slitting blade:4 pcs,can cut 5 strips
10.Blade material:Cr12Mov
11.Cutting type:Hydraulic
12.Hydraulic power:5.5kw
13.Control system:PLC,Delta brand
14.Function:set up the length and quantity

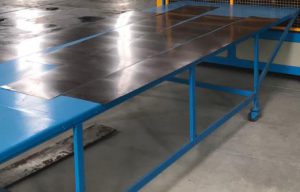

More pictures of the machine:
