ZTRFM-1000 IBR and Corrugated Sheet Double Layer Machine
ZTRFM-1000 IBR and Corrugated Sheet Double Layer Machine is a machine that can produce trapezoidal and corrugated shape sheet.
This type of machine usually has the following characteristics:
One machine for two purposes: It can produce both trapezoidal and corrugated shape sheet at the same time, saving site area and labor, and improving work efficiency.
Double-layer design: It adopts a double-layer structure and can be produced accordingly according to demand.
Customizable specifications: The specific specifications can be customized according to customer requirements.
Color customization: The overall color can be customized according to customer needs.
Motor and voltage: The motor power is generally 7.5kw, the voltage is 380v, 50hz, 3 phases, and can also be customized according to the standards of the country.
The technical specifications of the ZTRFM-1000 IBR and Corrugated Sheet Double Layer Machine:

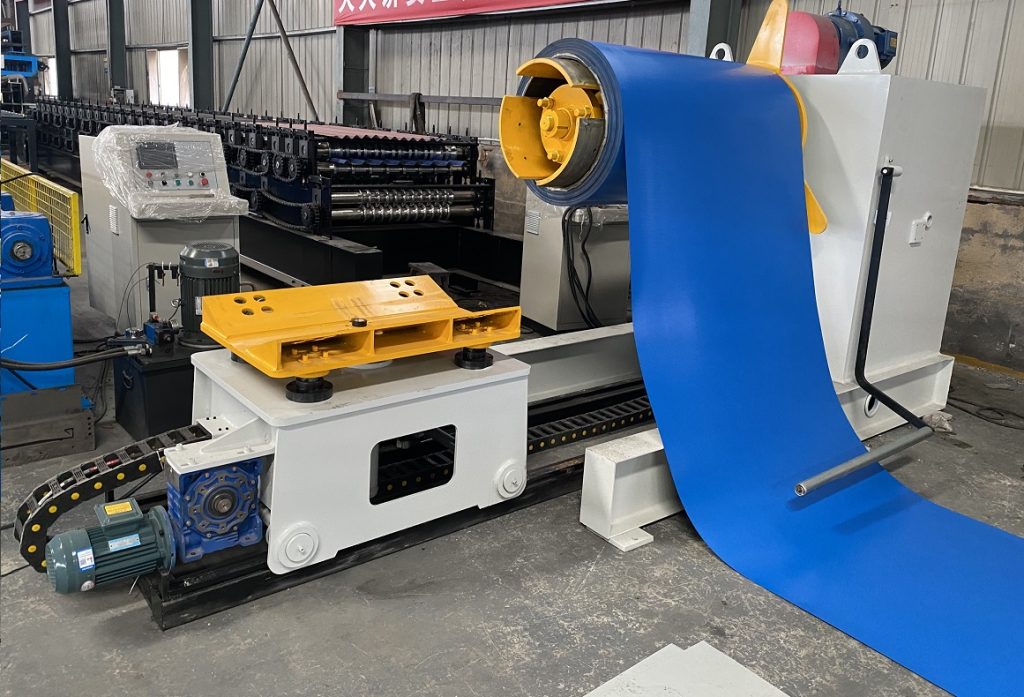

- Hydraulic decoiler with loading car: To load the coils and the core is expansion automatically, and the decoiler’s speed is adjustable automatically to match with the roll former’s speed.
2. Main roll forming machine of the ZTRFM-1000 IBR and Corrugated Sheet Double Layer Machine :
- Equipped with hydraulic pre-cutter
- Roller station: 18 stations +20 stations
- Roller material: 45# steel with quenched treatment, surface is chromed.
- Machine frame: 450# H steel
- Shaft diamter: 80mm
- Transmission: Gearbox+Chain
- Power: 7.5 kw
- Flying shear post cutting
3. Conveyor
- Function: to convey the sheets after cutting to the auto stacker quickly.
- Features: Double layer to match with the Double layer roll forming machine.
- Power: 3 kw
4. Automatic stacker
- Suitable length: max 12 meters, support customization according to customer’s request.
- Function: To receive the sheet and stack them orderly.
- Equipped with loading car which can lift up and down.
5. Hydraulic system
- Hydraulic motor power: 5.5 kw
- Servo motor power: 3 kw
- Cooling system: by fan
- Equipped with accumulator to increase the speed of the machine
6. Control station
- Control system: PLC
- Laugauge: Chinese, English, Spanish, Russian, France, Portuguese, etc. Support customization
- Brand of electric part: Siemens, Delta, Mitusubishi, Schneider etc
- Function: To set up the length and quantity, and set different batches.
