The angle steel light keel roll forming machine rolls and forms angle steel light keels. It is efficient and suitable for industrial production. It ensures precision and quality, and is often used in the construction and decoration industries to provide reliable materials.
The details of this ZTRFM high speed automatic angle steel light keel roll forming machine:
1. Uncoiler device of angle steel light keel roll forming machine
| Capacity | 3 tons |
| Coil width | max 1000mm, as customer’s request |
| Working type | hydraulic transmission |
| 4 support arms design | support the coil and prevent crease when uncoiling |
| With feeding guide device |

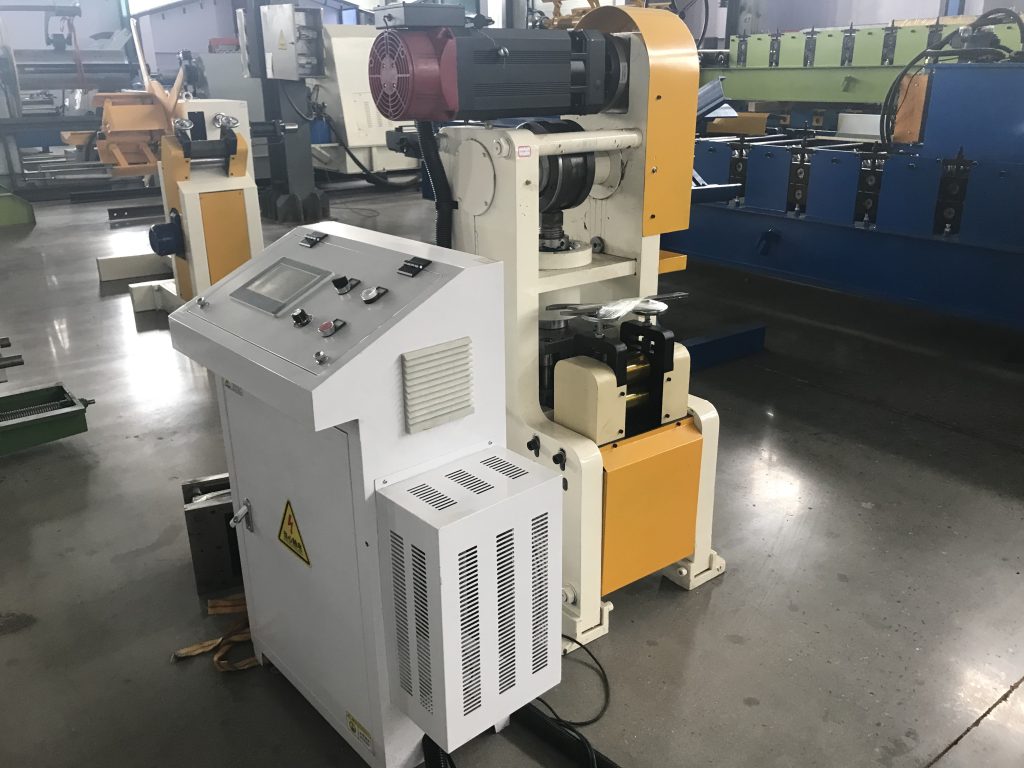

2.High-speed Punching machine of angle steel light keel roll forming machine
| the high punching speed | 120-200 times/min |
| Motor | 7.5 kw servo moto |
| Small size | saves space and small noise |
| Easy to change molds | |
| Capacity | 25 tons |
3.Roll forming machine
| Frame structure | 35mm thickness arch frame |
| Roller station | 10 stations |
| Roller material | Cr12mov, finishing after quenching heat treatment |
| Transmission type | by chains |
4.Hydraulic servo cutting system
5.Automatic stacker
Automatic stacker is a useful device. It is suitable for use in areas with high labor cost. Moreover, it can match the whole high speed production line. Additionally, it has a separated control screen, which is more convenient for adjustment
Angle steel light keel mainly has the following functions:
- Protectivefunction
- Prevent corner damage. At the corners of walls and columns of buildings, due to frequent external forces such as collisions and frictions, damage is prone to occur. Protective anglelight steel can be installed at these locations to play a role in protecting the corners and prevent the corners from being damaged or cracked by impacts.
- Corner protection angle steel can wrap the sharp corner of a wall to make it rounded and reduce the injury people may suffer when colliding.
- Reinforcement function
- Itcan enhance the strength of corners and improve the stability of the structure by connecting with walls or columns.
- Decorative Effect
- Corner angle steel can be chosen in different materials, colors, and shapes, coordinating with the overall style of the building, enhancing the aesthetic appearance of the architecture.
